Very Low Phase Noise 1 GHz OCXO

• Very Low Phase Noise
-75 dBc/Hz at 10Hz
-150 dBc/Hz on the Floor

• SC-Cut Crystal

• ITAR Free

• 7 Pin 36 x 27 mm Europack

• +7dBm Sine Wave Output

• Low Spurious

Click here for more information

Contact a technical support representative

NEL Frequency Controls Introduces Ultra Low Phase Noise OCXO @100MHz

NEL Frequency Controls, Inc. announced the release of its latest ultra low phase noise OCXO at 100 MHz.The O-CEXX Series at 100 MHz offers superior close-in phase noise of -105dBc/Hz at 10 Hz and -178dBc/Hz phase noise on the floor. The O-CEXX comes in a small, compact, 'Europack' package with dimensions of 36 x 27 mm and consumes significantly less power than alternative solutions. The O-CEXX Series is a Dual Use/ ITAR Free product offering.

"Our customers tell us that our ultra low phase noise OCXO's are 'best in class' solutions," notes Chuck Ulland, vice president of sales and marketing at NEL Frequency Controls. "Any application that requires instrument grade OCXO performance without the high cost, excessive power consumption, and large package size should consider this new product.”

Now Available - NEL's Product Selector Guide

View NEL's Product Selector Guide

'Best in Class' solutions available
Featuring ultra low phase noise crystal oscillators
See typical phase noise plots for each product
Products shown at scale
Low phase noise solutions for OCXO, TCXO, VCXO and XO available

Contact a technical support representative for more information!

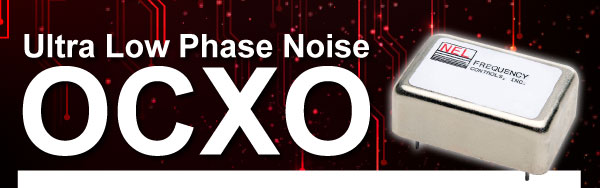

NEL's Ultra Low Phase Noise OCXO

Lowest Phase Noise OCXO Solution Available
• High Stability, Low Aging
• Sine Wave or HCMOS/TTL output

Specifications
• 10 MHz Output Frequence: -115dBc/@1Hz; -146dBc/@10Hz; -172dBc/Hz on the floor
• Frequencies up to 1.0 GHz available
• Small, Compact Package
1.42” x 1.07” x 0.50”
(36.1 mm x 27.2 mm x 12.7 mm)
• Precision SC-Cut Crystal



Click on the thumbnail to view a data plot of the Ultra Low Phase Noise OCXO.

This blog has moved

This blog is now located at http://nelfc.blogspot.com/.
You will be automatically redirected in 30 seconds, or you may click here.

For feed subscribers, please update your feed subscriptions to
http://nelfc.blogspot.com/atom.xml.

Low Phase Noise Solutions: 100 MHz OCXO

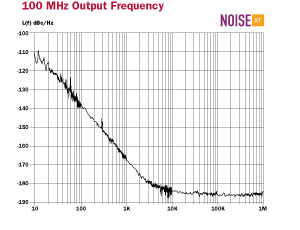

Click on the thumbnail to view a data plot for a 100 MHz OCXO.

Precision Ultra Low Phase Noise OCXO in 36x27 mm “Europack”

Product Data Sheet

Features

• SC-cut crystal • High Stability • Low Aging • Sine Wave or HCMOS/TTL output

• Ultra Low Phase Noise Option:

Standard(L) -140dBc/Hz at 10Hz; -169dBc/Hz on the floor

Premium(P) -145dBc/Hz at 10Hz; -170dBc/Hz on the floor

Ultimate(U) -115 dBc/Hz at 1 Hz -146dBc/Hz at 10Hz; -170dBc/Hz on the floor

Applications

• Telecommunication Systems • Data Communications • GPS • Instrumentation

Click here for details
