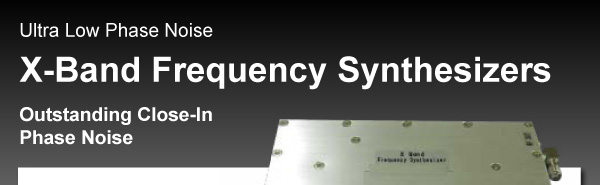

X-Band Frequency Synthesizers

Specifications

• 9.0 to 11.0GHz

• 10 pin | 110 X 65 X 30 mm package

• Phase noise offset

10Hz

100Hz

1KHz

10KHz

100KHz

1MHz

≤ -70 dBc/Hz

≤ -90 dBc/Hz

≤ -95 to -105 dBc/Hz

≤ -100 to -110 dBc/Hz

≤ -110 to -115 dBc/Hz

≤ -130 dBc/Hz

Details

Contact a representative

Precision Ultra Low Phase Noise OCXO

Dual Frequency Reference Module

Two frequency outputs—
•  10 MHz and 100 MHz

Ultra Low Phase Noise
•  -115 dBc/Hz at 1 Hz offset,
• •  -145 dBc/Hz at 10 Hz offset for 10 MHz
•  -125 dBc/Hz at 10 Hz offset,
• •  -185 dBc/Hz at 100 KHz for 100 MHz

Excellent temperature stability from 2 ppb
•  peak to peak

Low aging from 0.25 ppb/day

Excellent short term stability
•  AVAR < 1E-12 at 1 s

More information

Contact a technical support representative
