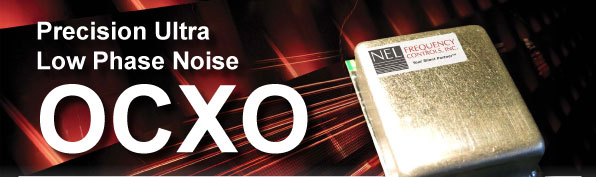

41 x 30 mm SMD Package
Specifications
SC-cut crystal
High stability
Low aging
OSC disable and oven alarm for instrumentation
Ultra low phase noise
–Standard (L)
-110 dBc/Hz at 1Hz -140 dBc/Hz at 10Hz -172 dBc/Hz on the floor
–Premium (P)
-112 dBc/Hz at 1Hz -143 dBc/Hz at 10Hz -172 dBc/Hz on the floor
–Ultimate (U)
-115 dBc/Hz at 1Hz -146 dBc/Hz at 10Hz -172 dBc/Hz on the floor
Ideal for instrumentation, radar, satellite • communications, reference, COTS/dual use, • and test and measurement applications
