Ultra Low Phase Noise OCXOs

Precision Ultra Low Phase Noise in Low
Profile 22 x 25 x 9 mm SMD Package

Specifications

• SC-cut crystal

• High Stability

• Low Profile (9 mm) SMD package

• Low Aging

• Ultra Low Phase Noise Option:

Premium(P)


Ultimate(U)


-145 dBc/Hz at 10Hz;
-172 dBc/Hz on the floor

-115 dBc/Hz at 1 Hz;
-146 dBc/Hz at 10Hz;
-172 dBc/Hz on the floor

• Sine Wave or HCMOS/TTL output

• Ideal for instrumentation, telecommunication
systems, data systems and GPS

Details

Contact a representative

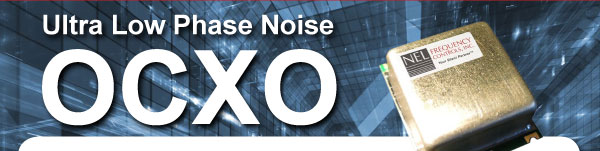

Ultra Low Phase Noise

OCXO

Precision SC-cut HF in Tiny
14 x 21 x 7.5 mm SMD Package

Specifications

SC-cut crystal

Ultra Low Phase Noise

Sine wave +15 dBm output

Extremely small, slim package

Ideal for instrumentation, radar, high end
    synthesizers, telecommunication systems
    and data communications

Contact a representative

Details
