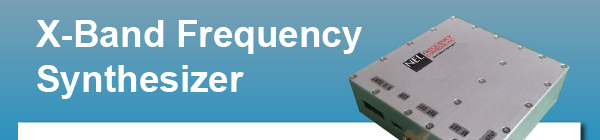

X-Band Frequency Synthesizer

Subscribe to our monthly email       Unsubscribe

NEW Extraordinary Low Phase Noise 90 x 90 x 28 mm N-DCN-DC103-102 (V2) – IR Specifications • 9.0 to 10.0 GHz • Synthesizer Phase Noise • ≤ –95 dBc/Hz at 100 Hz • ≤ –105 dBc/Hz at 1 KHz • ≤ –120 dBc/Hz at 10 KHz • ≤ –123 dBc/Hz at 100 KHz Contact a representative Details

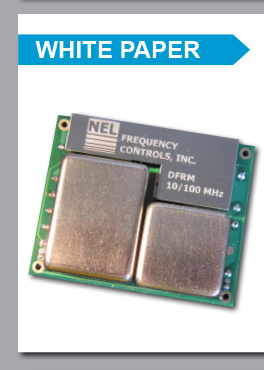

Testing Phase Noise of Ultra Low Phase Noise OCXOs Challenges and Solutions Cross correlation technique is used to test phase noise of ULPN OCXOs Four test instruments are evaluated: • Noise XT DCNTS • Agilent's E5052B • Symetricomm 5120A-01 • Anapico APPH6000 Each is rated in terms of: • Accuracy • Speed • Ease of use • Range • Cost • Ease of data retrieval Details

Follow us on LinkedIn for updates on industry news!

NEL Frequency Controls, Inc. 357 Beloit St., P.O. Box 457 • Burlington, WI 53105-0457 Phone: 262.763.3591 • Fax: 262.763.2881 • Email: sales@nelfc.com www.nelfc.com

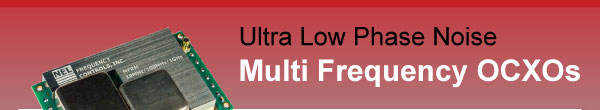

Multi and Dual Frequency OCXOs

3 Frequency Outputs     10 MHz, 100 MHz, 1 GHz Ultra Low Phase Noise • -115 dBc/Hz at 1 Hz offset,   -145 dBc/Hz at 10 Hz offset for 10 MHz • -123 dBc/Hz at 10 Hz offset,   -180 dBc/Hz on the floor for 100 MHz • -105 dBc/Hz at 10 Hz offset,   -160 dBc/Hz at 100 KHz for 1 GHz Excellent Temperature Stability     from 2 ppb peak to peak Contact a representative More information

NEW Precision Ultra Low Phase Noise OCXO Dual Frequency Reference Module • 10 MHz • 100 MHz, Single • 100 MHz, Multiple • Excellent temperature    stability from 2 ppb peak to    peak (single oven option), and    from +/-0.1 ppb for DOCXO • Low aging from 0.20 ppb/day • Excellent short term stability    AVAR < 1E-12 at 1 s Ultra Low Phase Noise -115 dBc/Hz at 1 Hz offset,     -145 dBc/Hz at 10 Hz offset for 10 MHz -123 dBc/Hz at 10 Hz offset,     -180 dBc/Hz on the floor for 100 MHz -185 dBc/Hz on the noise floor     with single 100 MHz output Contact a representative Details

Precision Ultra Low Phase Noise OCXO Dual Frequency Reference Module Two frequency outputs— •  10 MHz and 100 MHz Ultra Low Phase Noise •  -115 dBc/Hz at 1 Hz offset, •    -145 dBc/Hz at 10 Hz offset for 10 MHz •  -123 dBc/Hz at 10 Hz offset, •    to -185 dBc/Hz at 100 KHz for 100 MHz Excellent temperature stability from 2 ppb •  peak to peak Low aging from 0.25 ppb/day Excellent short term stability •  AVAR < 1E-12 at 1 s More information Contact a technical support representative
