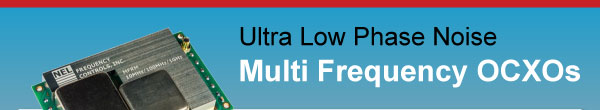

3 Frequency Outputs 10 MHz, 100 MHz, 1 GHz
Ultra Low Phase Noise
• -115 dBc/Hz at 1 Hz offset, -145 dBc/Hz at 10 Hz offset for 10 MHz
• -123 dBc/Hz at 10 Hz offset, -180 dBc/Hz on the floor for 100 MHz
• -105 dBc/Hz at 10 Hz offset, -160 dBc/Hz at 100 KHz for 1 GHz
Excellent Temperature Stability from 2 ppb peak to peak
Contact a representative
More information
Precision Ultra Low Phase Noise OCXO
Dual Frequency Reference Module
Two frequency outputs • 10 MHz and 100 MHz
Ultra Low Phase Noise • • -115 dBc/Hz at 1 Hz offset, • -145 dBc/Hz at 10 Hz offset for 10 MHz
• • -123 dBc/Hz at 10 Hz offset, • -185 dBc/Hz at 100 KHz for 100 MHz
Excellent temperature stability • from 2 ppb peak to peak
Low aging from 0.25 ppb/day
Excellent short term stability • AVAR 1E-12 at 1 s
Follow us on LinkedIn for updates on industry news!
NEL Frequency Controls, Inc. 357 Beloit St., P.O. Box 457 • Burlington, WI 53105-0457 Phone: 262.763.3591 • Fax: 262.763.2881 • Email: sales@nelfc.com
